This video tutorial series explains all steps from the Revitmodel to structural design with . How do we adjust the analytical model in Revit. What to consider when defining openings, loads and supports. How to arrange edge releases. Where is the mapping of material and cross-sections happening. First the calculation is done with the 3D system and the column design is shown. After that, a 2D subsystem is derived from 3D and calculated. Finally we look at the design of beams and slabs. In the next step, columns and a floor slab are automatically reinforced based on the design results. It continues with the design of short Revit walls, such as those that can arise from doorways. Next we look at the wall area above openings. The lintel usually remains here. SOFiSTiK integrates the internal FEM forces of the wall so that the lintel can be designed as a beam.
In the summer of 2022, SOFiSTiK introduced the AMG (Analytical Model Generator), a groundbreaking new tool that allows Revit users to automatically and effortlessly create and optimize analytical models. The Analytical Model Generator is also presented in this series.
Then we continue with new features that were introduced with SOFiSTiK 2023:
– Variable Thickness and Attribute Lines
– Setting the local coordinate systems for slabs and walls
– Analytical column model: line or membrane? with the AMG

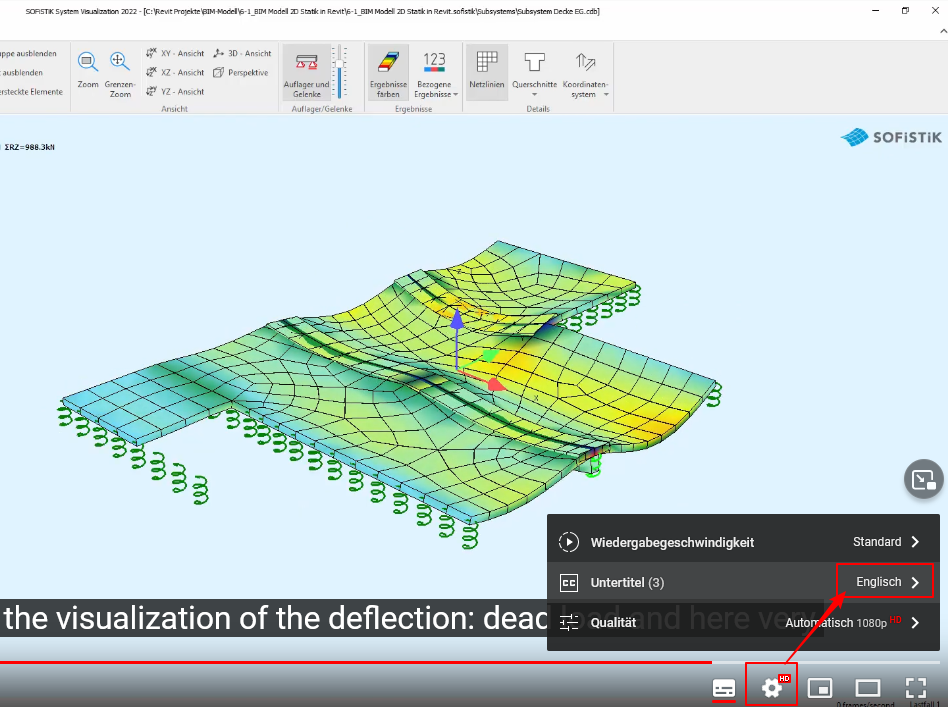

Remember: The video language is German with English subtitles. So don’t forget to switch them on 🙂
The Video series „BIM Workflow with Revit and SOFiSTiK“ consists of these chapters:
Part 18 – Analytical column model: line or membrane? with the AMG
Part 17 – Local coordinate systems with SOFiSTiK and Revit
Part 16 – Update: Analytical Model Revit 2023 with SOFiSTiK
Part 15 – Variable Thickness and Attribute Lines with SOFiSTiK and Revit 2023
Part 14 – Analytical Model Revit 2023 with SOFiSTiK See also Update Part 16!
Part 13 – AMG Analytical Model Generator
Part 12 – Revit lintel design (wall area above openings)
Part 11 – Design of short Revit walls
Part 10 – Automatic reinforcement generation in Revit
Part 9 – 2D slab design
Part 8 – 2D beam design
Part 7 – 2D calculation of the subsystem
Part 6 – 3D column design
Part 5 – 3D calculation of the main system
Part 4 – Mapping and edge releases
Part 3 – How to handle supports
Part 2 – Openings and load cases
Part 1 – Adjusting the analytical modell in Revit Note: For Revit 2023 (and newer) also see Part 14
